<azonenberg>
anyway, as of now i've re'd enough to have 10Gbase-R and a custom 5 Gbps 8b10b based protocol working using raw GTYs and no wizard
<azonenberg>
using the QPLL
<azonenberg>
for the CPLL I need to finish reading this one blog article by some random guy in israel
<azonenberg>
who describes a silicon bug that you need an RTL workaround on to make it lock
<Wanda[cis]>
this pretty much confirms the whole "using two memory cells as the two latches of the flop" part
<Wanda[cis]>
though I thiiink this may be a followup to some earlier patent?
<azonenberg>
tl;dr you wait for it to say it's locked, measure the actual frequency against a known frequency reference (BUFG clock)
<azonenberg>
if it's locked, good
<azonenberg>
if it's off (i guess a multiple or divisor of the real clock because the vco went mutliphase or something?) you reset it, poke some undocumented registers in various ways, and try again
<azonenberg>
and eventually it comes up
<azonenberg>
QPLL doesnt have this issue and just works
<Wanda[cis]>
lovely
<azonenberg>
but anyway, i want to extract the relevant bits and algorithm from his post and mention it in my GTY docs then link to his post for all the dirty details
<Wanda[cis]>
anyway, no, I haven't done any proper (functional) reversing of the transceivers and I have no plans to
<azonenberg>
yeah i just think it makes sense for the info to be in the same overall set of docs
<Wanda[cis]>
I will at some point reverse the bitstream mapping and that's it
<azonenberg>
since it's kinda important for an end to end foss workflow
<Wanda[cis]>
mhm
<Wanda[cis]>
I mean
<azonenberg>
anyway i'll have a look at updating my stuff to your new doc format in the next couple days if i have a chance
<Wanda[cis]>
there's actually a difference here
<azonenberg>
?
<Wanda[cis]>
the bitststream and raw routing stuff is not of interest to end user
<Wanda[cis]>
the functional description is
<azonenberg>
True
<azonenberg>
But like, 95% of the primitives are documented by xilinx and it doesnt seem to make a whole lot of sense to have a separate project just for the other 5%
<Wanda[cis]>
oh yes
<azonenberg>
it makes sense to me to lump it in with bitstream stuff under the "stuff xilinx doesnt talk about" bit
<Wanda[cis]>
I just want to do a bit more restructuring to have it on a separate subpage
<azonenberg>
because realistically what we are going to end up with long term is a foss IP block that wraps the primitives and hides all the magic undefined constants
<azonenberg>
behind some sv attributes for things like 'data rate in gbps' and 'channel insertion loss in db'
<azonenberg>
and then the only folks who will have to read the details are those who are poking drp registers for runtime data rate changes etc
<azonenberg>
which overlaps quite strongly with bitstream stuff
<azonenberg>
Wanda[cis]: also innteresting looking at the patent
<azonenberg>

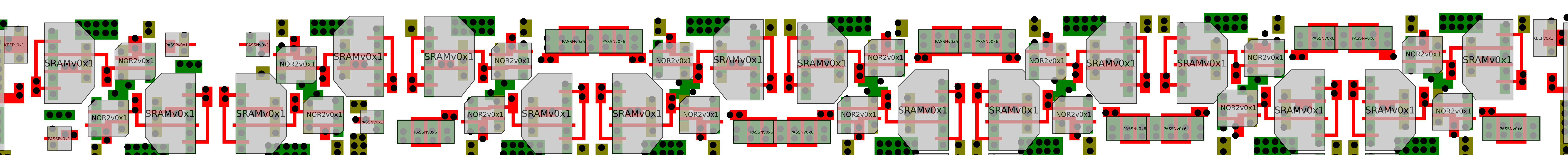

i've never actually looked at circuit level structures of modern FPGAs only the coolrunners
<azonenberg>
which were very straightforward, basically 6T SRAM cells with one or both of the inverter loop outputs wired directly to inputs of other combinatorial logic blocks
<azonenberg>
(in some cases even on poly lol)
<Wanda[cis]>
yeah I haven't looked at them much, but there's a lot of the low-level structure that obviously shows up in the bitstream or even functional behavior
<Wanda[cis]>
I expect the modern CLB to be very tightly optimized by hand
<azonenberg>
i mean the coolrunner is too
<Wanda[cis]>
(there's also a bunch of stuff at the bitstream level that only makes sense if you read the right xilinx patent to understand the low-level structure; I did a lot of that when looking at the I/O blocks and the DCMs)
<azonenberg>
its not like parallel rows of standard cells
<azonenberg>
they have like 3 different 6t bitcell structures depending on where you are
<Wanda[cis]>
btw, fun fact: the Virtex 6 and Virtex 7 CLB are completely functionally identical, and have the exact same bitstream fields; however, the locations of some bitstream bits have been moved a bit between the two, probably as part of manual re-layout for the new process
<azonenberg>
interesting. i knew xc6v and xc7v had strong lineage but i didnt realize they were bit for bit identical
<azonenberg>
so xc7c is basically just a die shrink of xc6v as far as the actual logic fabric goes?
<azonenberg>
xc7v*
<Wanda[cis]>
as far as the CLB goes, yes
<azonenberg>
with only the io and hard ip being significantly changed?
<Wanda[cis]>
the DSP and BRAM, mostly so, though there new undocumented knobs present (at least in BRAM, not sure about the DSP)
<Wanda[cis]>
however, they have modified the interconnect structure
<Wanda[cis]>
Virtex 6 has single/double/quad and 16-length long wires; Virtex 7 changes some quad lines to hex lines, and has 12-length and 18-length long wires
<Wanda[cis]>
also, interconnect geometry; Virtex 6 has a column structure of CLB-INT-CLB-INT-CLB-INT; Virtex 7 has CLB-INT-INT-CLB-CLB-INT-INT-CLB, and they make use of it to share the last mile of clock routing between the pair of adjacent INT columns
<Wanda[cis]>
(which then Ultrascale changed further to CLB-INT-CLB-CLB-INT-CLB structure, except when you look closely at the INT tile you kinda see two sub-tiles for the left and right sides)
