06:55 <_whitenotifier-8> [glasgow] joelpmichael opened issue #994: New version of yowasp-yosys 0.56 breaks glasgow - https://github.com/GlasgowEmbedded/glasgow/issues/994

08:38 <_whitenotifier-8> [glasgow] whitequark commented on issue #994: New version of yowasp-yosys 0.56 breaks glasgow - https://github.com/GlasgowEmbedded/glasgow/issues/994#issuecomment-3167031780

09:38 <_whitenotifier-8> [glasgow] joelpmichael opened pull request #995: Block yowasp-yosys 0.56 - https://github.com/GlasgowEmbedded/glasgow/pull/995

09:44 <chmod750[m]> It would be awesome to have an openocd driver for glasgow. Is it plan?

09:46 <whitequark[cis]> there is a jtag-openocd applet already

09:47 <_whitenotifier-8> [glasgow] whitequark commented on pull request #995: Block yowasp-yosys 0.56 - https://github.com/GlasgowEmbedded/glasgow/pull/995#issuecomment-3167260762

09:47 <whitequark[cis]> is it too slow for your needs?

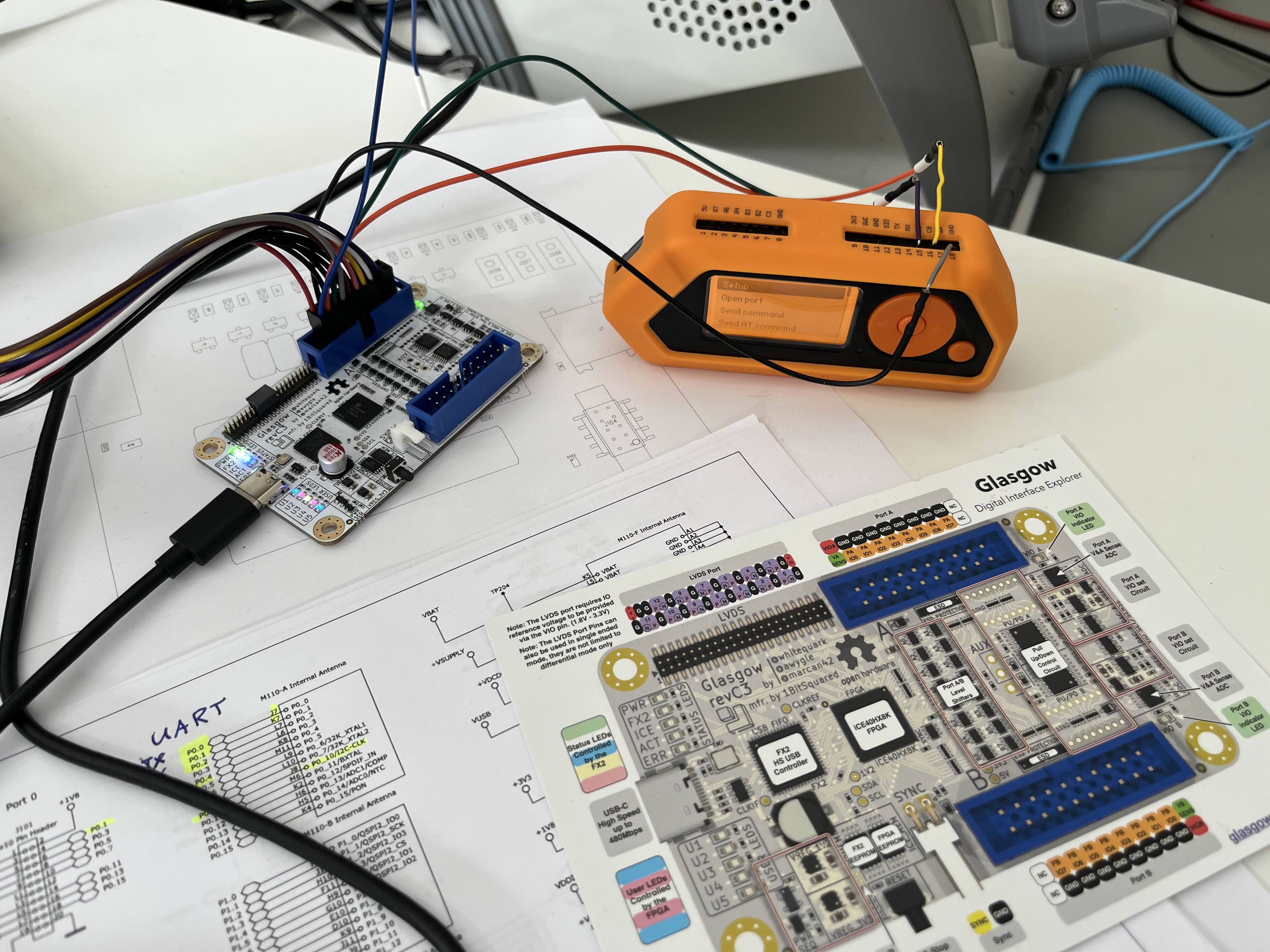

09:53 <esc_ctrl[m]> Today at work 🤓 preparing a demo for my colleagues on using the Glasgow for I2C and JTAG scanning, also UART, and my dolphin buddy being a willing target.

09:53 <esc_ctrl[m]> Had a funny output when the flipper and glasgow both tried to scan the I2C bus simultaneously lol. "Found" hundreds of devices on the bus! 🚌

09:55 <_whitenotifier-8> [glasgow] joelpmichael commented on issue #994: New version of yowasp-yosys 0.56 breaks glasgow - https://github.com/GlasgowEmbedded/glasgow/issues/994#issuecomment-3167285100

09:56 <whitequark[cis]> esc_ctrl[m]: > <@_discord_502340037099257856:catircservices.org> Today at work 🤓 preparing a demo for my colleagues on using the Glasgow for I2C and JTAG scanning, also UART, and my dolphin buddy being a... (full message at <https://catircservices.org/_irc/v1/media/download/AVooZcDkpds7ryt8R3v2WgZ00OvD0EZ1fie6hqIsLrLVeCOtgGBqylTP5OI2NMEtNg7zJR5o2Nd_mIQOtGR7aFu_8AAAAAAAAGNhdGlyY3NlcnZpY2VzLm9yZy9lb29NRXlSbllJbkpKZmRhR3prTHBMWVU>)

09:57 <_whitenotifier-8> [glasgow] whitequark commented on issue #994: New version of yowasp-yosys 0.56 breaks glasgow - https://github.com/GlasgowEmbedded/glasgow/issues/994#issuecomment-3167291412

10:04 <esc_ctrl[m]> I have noticed the "CTRL-q" to quit never works for me. I'm using a German keyboard. Is this just a bug with hanging apps? I have to hard reset to get it back.

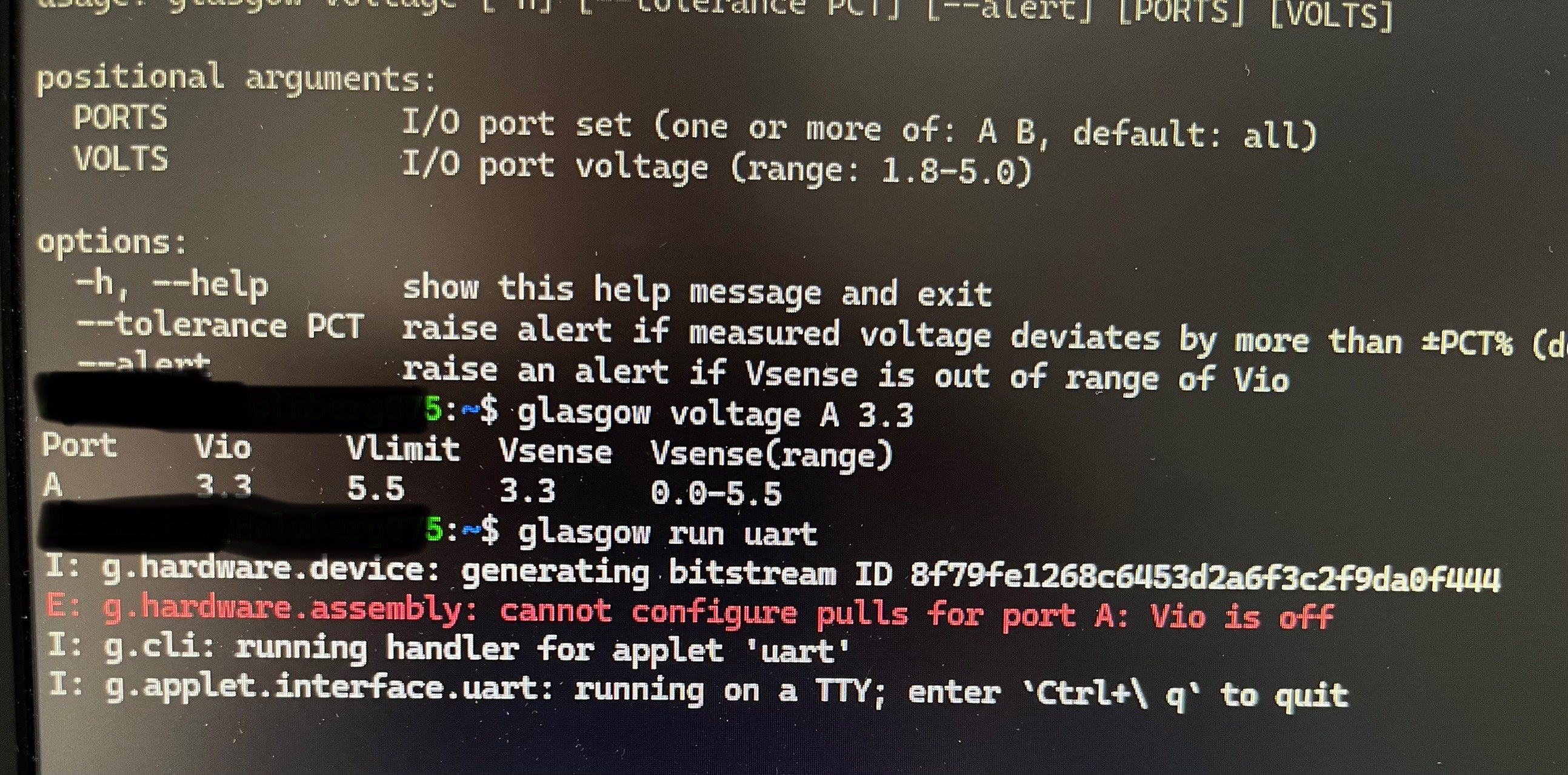

10:04 <esc_ctrl[m]> Also I don't know why it's saying here that Vio is off when I just set Vio to 3.3V

10:08 <chmod750[m]> A problem was on my side, seems perfect now ! I love the glasgow so far 🙂

10:20 <whitequark[cis]> <chmod750[m]> A problem was on my side, seems perfect now ! I love the glasgow so far 🙂

10:20 <whitequark[cis]> i'm happy to hear that!

10:21 <whitequark[cis]> <esc_ctrl[m]> I have noticed the "CTRL-q" to quit never works for me. I'm using a German keyboard. Is this just a bug with hanging apps? I have to hard reset to get it back....... (full message at <https://catircservices.org/_irc/v1/media/download/AQ1kgCbNln42l1iVJciDqsY8r-mSnk2FTC6s3er-W-jgid429WpiiNmwRw6e_jDnJlDi-EO2qlFAs_9KhlSWZK6_8AAAAAAAAGNhdGlyY3NlcnZpY2VzLm9yZy9ibkxQcFFLaEhJaWl4ZHZNcmJkcGZKTG8>)

10:21 <whitequark[cis]> two key combos

10:21 <whitequark[cis]> well, one combo and one keypress

10:21 <whitequark[cis]> re Vio being off: that's a bug, please report it

10:42 <esc_ctrl[m]> Is the best way to do that through github

10:43 <esc_ctrl[m]> I'm typing "CTRL \ q", three keys, and it still isn't quitting the app

10:45 <Attie[m]> it's Ctrl+\ ... and then q

10:45 <Attie[m]> press Ctrl+\, release, press q, release

10:46 <esc_ctrl[m]> Oh ok I was able to do that. Quite complicated and moreso on a german keyboard where \ already requires a special two key combo

10:47 <Attie[m]> oh no! (out of interest, where is \ for you?)

10:48 <whitequark[cis]> I agree it's pretty obscure and we may want to change it to something like what SSH does

10:48 <whitequark[cis]> or just Ctrl+G q

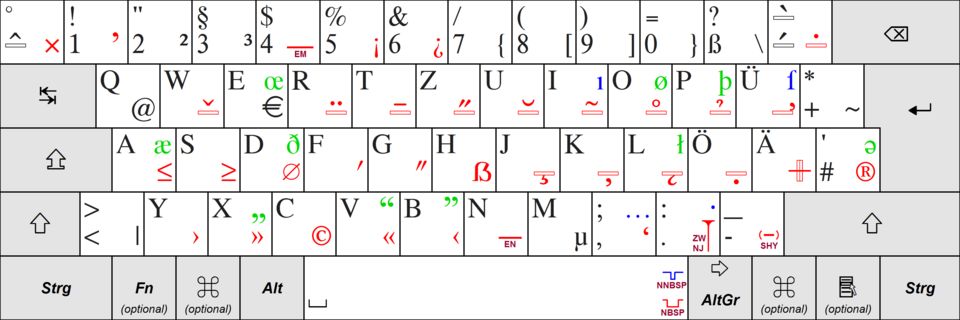

11:00 <maehw[m]> <Attie[m]> oh no! (out of interest, where is \ for you?)

11:00 <maehw[m]> That works be on ß + AltGr

11:00 <maehw[m]> * That would be on ß + AltGr

11:41 <_whitenotifier-8> [glasgow] joelpmichael synchronize pull request #995: Block yowasp-yosys 0.56 - https://github.com/GlasgowEmbedded/glasgow/pull/995

11:42 <_whitenotifier-8> [glasgow] joelpmichael commented on pull request #995: Block yowasp-yosys 0.56 - https://github.com/GlasgowEmbedded/glasgow/pull/995#issuecomment-3167588261

11:45 <_whitenotifier-8> [glasgow] whitequark commented on pull request #995: Block yowasp-yosys 0.56 - https://github.com/GlasgowEmbedded/glasgow/pull/995#issuecomment-3167593656

11:50 <whitequark[cis]> I did not realize this key combo would be so inaccessible, can you open an issue please?

11:50 <WilfriedWonkaKla> <esc_ctrl[m]> Oh ok I was able to do that. Quite complicated and moreso on a german keyboard where \ already requires a special two key combo

11:50 <WilfriedWonkaKla> Ctrl+AltGr+ß did work for me - but I switched to a US keyboard with EURKEY layout since then.

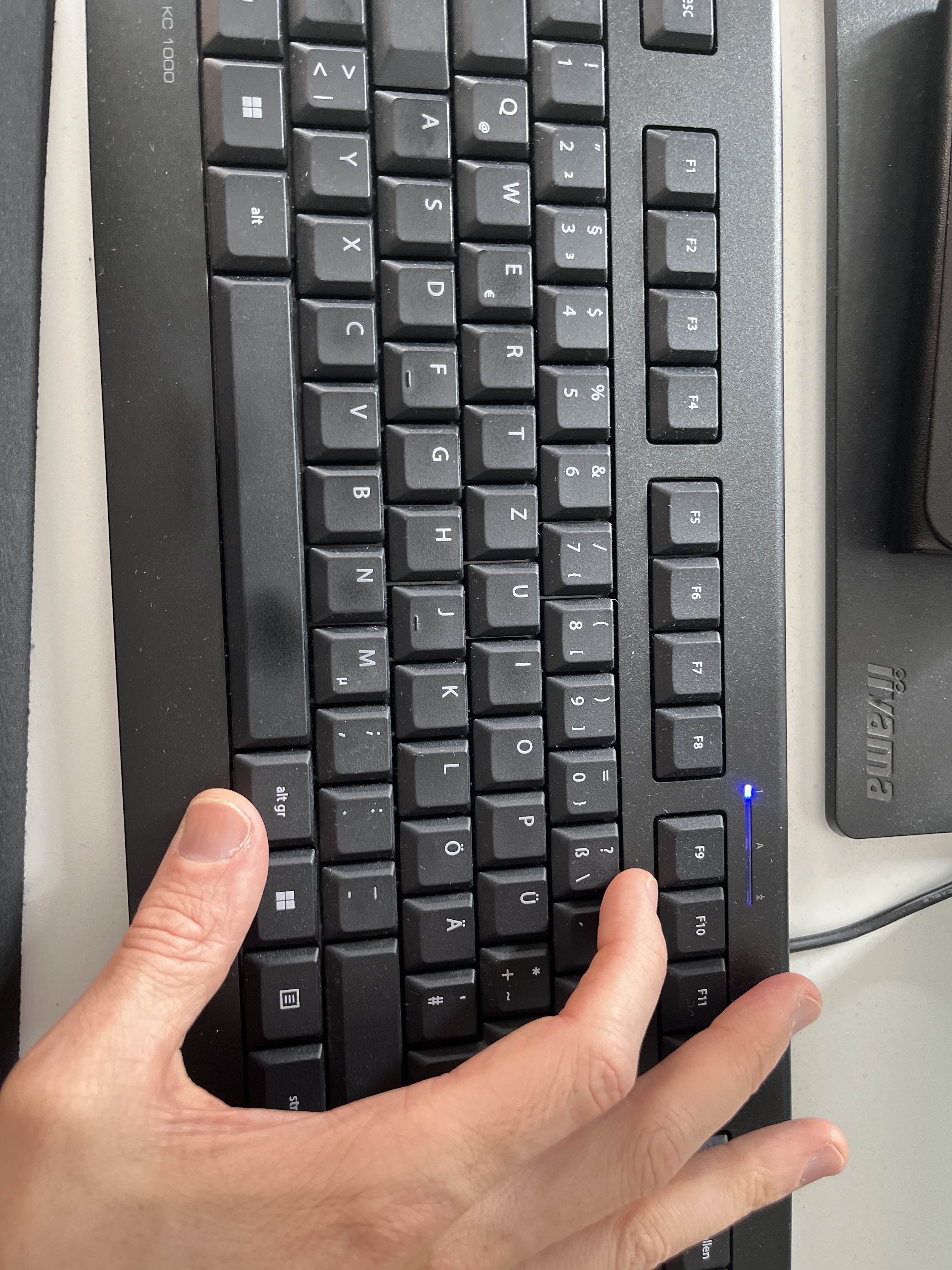

11:54 <esc_ctrl[m]> I have my fingers here showing the combo of "alt gr" and "ß"

11:55 <esc_ctrl[m]> Shift plus a key selects the character on top, while "alt gr" plus a key selects the character on the right of the key

11:59 <_whitenotifier-8> [glasgow] joelpmichael closed pull request #995: Block yowasp-yosys 0.56 - https://github.com/GlasgowEmbedded/glasgow/pull/995

12:01 <_whitenotifier-8> [glasgow] joelpmichael commented on pull request #995: Block yowasp-yosys 0.56 - https://github.com/GlasgowEmbedded/glasgow/pull/995#issuecomment-3167639299

12:04 <_whitenotifier-8> [glasgow] joelpmichael opened pull request #996: pyproject.toml: exclude yowasp-yosys 0.56 - https://github.com/GlasgowEmbedded/glasgow/pull/996

12:28 <_whitenotifier-8> [glasgow] whitequark commented on pull request #996: pyproject.toml: exclude yowasp-yosys 0.56 - https://github.com/GlasgowEmbedded/glasgow/pull/996#issuecomment-3167722676

12:28 <_whitenotifier-8> [glasgow] github-merge-queue[bot] created branch gh-readonly-queue/main/pr-996-8b021305f059fae685fe862c9b73399dc2f09f21 - https://github.com/GlasgowEmbedded/glasgow

12:32 <_whitenotifier-8> [GlasgowEmbedded/glasgow] github-merge-queue[bot] pushed 1 commit to main [+0/-0/±2] https://github.com/GlasgowEmbedded/glasgow/compare/8b021305f059...13f7c6983dab

12:32 <_whitenotifier-8> [GlasgowEmbedded/glasgow] joelpmichael 13f7c69 - pyproject.toml: exclude yowasp-yosys 0.56 as it fails building Glasgow applets with error ERROR: Assert `count_id(wire->name) == 0' failed in ../yosys-src/kernel/rtlil.cc:2621. Yosys issue ref: https://github.com/YosysHQ/yosys/issues/5274

12:32 <_whitenotifier-8> [glasgow] github-merge-queue[bot] deleted branch gh-readonly-queue/main/pr-996-8b021305f059fae685fe862c9b73399dc2f09f21 - https://github.com/GlasgowEmbedded/glasgow

12:32 <_whitenotifier-8> [glasgow] whitequark closed pull request #996: pyproject.toml: exclude yowasp-yosys 0.56 - https://github.com/GlasgowEmbedded/glasgow/pull/996

12:32 <_whitenotifier-8> [glasgow] whitequark closed issue #994: New version of yowasp-yosys 0.56 breaks glasgow - https://github.com/GlasgowEmbedded/glasgow/issues/994

13:18 <esc_ctrl[m]> How do I set the pullups or pulldowns? I'm trying to use the audio-dac applet but it is telling me that it uses a deprecated V1 API and also crashing due to not being able to set the AB pull resistors

13:23 <whitequark[cis]> you probably forgot a --voltage argumrnt

13:24 <whitequark[cis]> s/argumrnt/argument/

13:25 <esc_ctrl[m]> Ah that fixed it

13:26 <whitequark[cis]> this is bad UX but it'll fix itself with the migration to V2 API

20:42 <_whitenotifier-8> [glasgow] ArkBrj opened issue #997: jtag-probe crashes with "-V A=SA" voltage setting. - https://github.com/GlasgowEmbedded/glasgow/issues/997
